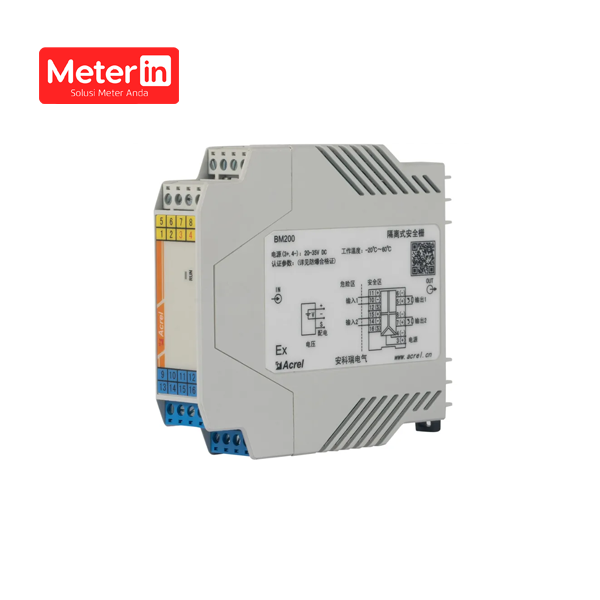

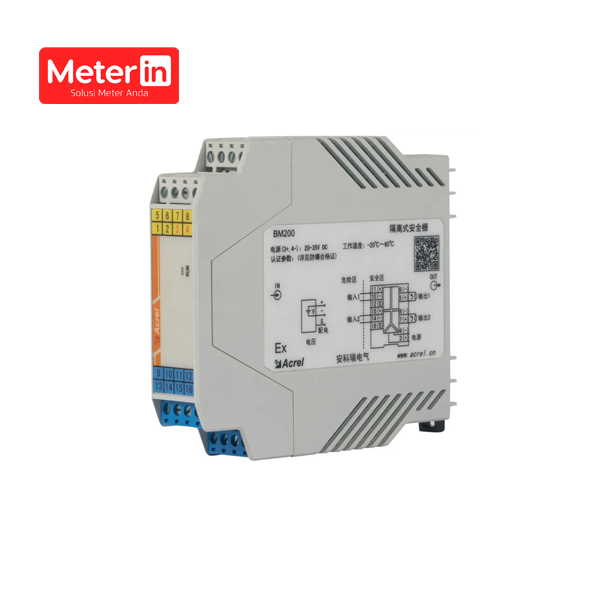

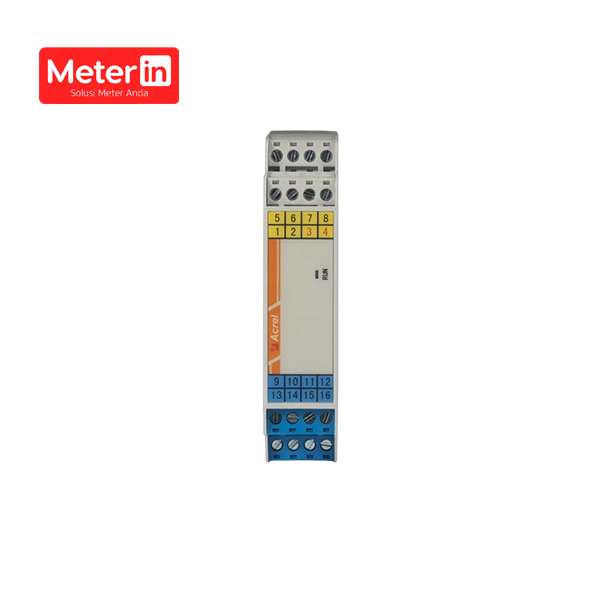

Signal Isolator Barrier

Description

Current Input Signal Isolation Barrier:
BM200-DI/I-B11 : Input:DC 0/4-20mA;1 Channel Output:DC 0/4-20mA;
Power:DC 20V~35V

BM200-DI/I-C12 : Input:DC 0/4-20mA;2 Channels Output:DC 0/4-20mA;
Power:DC 20V~35V

BM200-DI/I-C22 : 2 Channels Input:DC 0/4-20mA;2 Channels Output:DC 0/4-20mA;
Power:DC 20V~35V

Voltage Input Signal Isolation Barrier:
BM200-DV/I-B11 : Input:DC 0/1~5V or DC 0/2~10V;1 Channel Output:DC 0/4-20mA;
Power:DC 20V~35Vt

BM200-DV/V-B11 : Input:DC 0/1~5V or DC 0/2~10V;1 Channel Output:DC 0/1~5V or
DC 0/2~10V;Power:DC 20V~35V

BM200-DV/I-C22 : 2 Channels Input:DC 0/1~5V or DC 0/2~10V;2 Channels
Output:DC 0/4-20mA;Power:DC 20V~35V

BM200-DV/V-C22 : 2 Channels Input:DC 0/1~5V or DC 0/2~10V;2 Channels
Output:DC 0/1~5V or DC 0/2~10V;Power:DC 20V~35V

Thermal Resistance Input Signal Isolation Barrier:
BM200-TR/I-B11 : Input:PT100;1 Channel Output:DC 0/4-20mA;
Power:DC 20V~35V

BM200-TR/V-B11 : Input:PT100;1 Channel Output:DC 0/1~5V or DC 0/2~10V;
Power:DC 20V~35V

BM200-TR/I-C12 : Input:PT100;2 Channels Output:DC 0/4-20mA;
Power:DC 20V~35V

BM200-TR/V-C12 : Input:PT100;2 Channels Output:DC 0/1~5V or DC 0/2~10V;
Power:DC 20V~35V

BM200-TR/I-C22 : 2 Channels Input:PT100;2 Channels Output:DC 0/4-20mA;
Power:DC 20V~35V

BM200-TR/V-C22 : 2 Channels Input:PT100;2 Channel
Output:DC 0/1~5V or DC 0/2~10V;Power:DC 20V~35V

Potentiometer Input Signal Isolation Barrier:
BM200-VR/I-B11 : 1 channel Input:0-5/10kΩ Potentiometer;
1 Channel Output:DC 0/4-20mA;Power:DC 20V~35V

BM200-VR/V-B11 : 1 channel Input:0-5/10kΩ Potentiometer;
1 Channel Output:DC 0/1~5V or DC 0/2~10V;Power:DC 20V~35V

BM200-VR/I-C12 : 1 channel Input:0-5/10kΩ Potentiometer;
2 Channels Output:2 mutually independent DC 0/4-20mA

BM200-VR/V-C12 : 1 channel Input:0-5/10kΩ Potentiometer;
2 Channels Output:2 mutually independent DC 0/1~5V or0/2~10V

BM200-VR/I-C22 : 2 Channels Input:0-5/10kΩ Potentiometer;
2 Channels Output:2 mutually independent DC 0/4-20mA

BM200-VR/V-C22 : 2 Channels Input:0-5/10kΩ Potentiometer;
2 Channels Output:2 mutually independent DC 0/1~5V or0/2~10V

Weight	1 kg
Dimensions	1 × 1 × 1 cm
TIpe	BM200-DI/I-B11, BM200-DI/I-C12, BM200-DI/I-C22, BM200-DV/I-B11, BM200-DV/V-B11, BM200-DV/I-C22, BM200-DV/V-C22, BM200-TR/I-B11, BM200-TR/V-B11, BM200-TR/I-C12, BM200-TR/V-C12, BM200-TR/I-C22, BM200-TR/V-C22, BM200-VR/I-B11, BM200-VR/V-B11, BM200-VR/I-C12, BM200-VR/V-C12, BM200-VR/I-C22, BM200-VR/V-C22
