Description

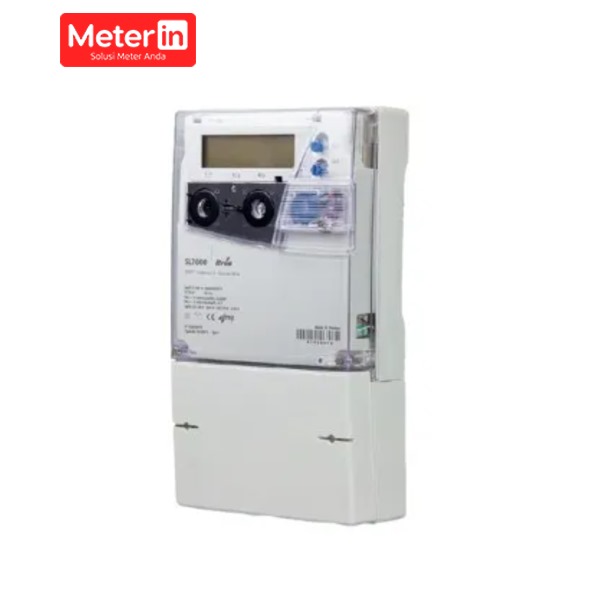

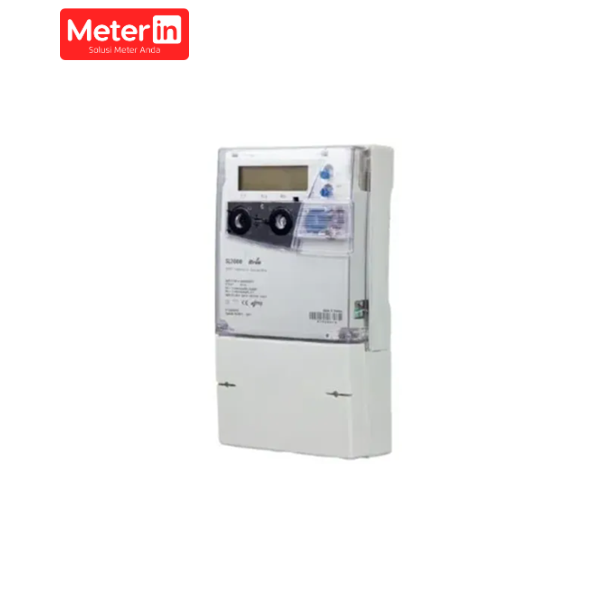

Kwh meter 3 Phase ACE SL7000-0.5s Menawarkan solusi untuk semua industri dan aplikasi gardu induk dan dilengkapi dengan komunikasi teknologi fleksibel yang dikombinasikan dengan unsur pengukuran K&I tradisional, yaitu Rentang meteran yang menawarkan keserbagunaan dan fleksibilitas yang dibutuhkan untuk memenuhi pasar yang berubah dengan cepat saat ini.

Technical Specifications :
Ratings
Voltage: 357.7/100V up to 3277/480V auto ranging
Direct Current: In 5A, Imax 120A
CT Connection: Ib 1A, Imax 10A

Network Types
Direct Connection: 4-wire meter remains operational in 3-wire
connection without neutral
CT, VT connection: 3- and 4-wire configurable configurations

Accuracy
Direct Connected:Class 1 or Class B
Transformer Connected: Class 0.2S, Class 0.5S or Class C
Reactive energy:Class 1 or Class 2

Frequency: 50 / 60 Hz
Standards : Full compliance with IEC 62052, IEC 62053, MID standard EN50470-1
and EN50470-3 and CE marking standards (mechanical, climatic,
electrical, electromechanical, metrological)
Communications : IR-port (IEC 61107), optional RS232C and/or RS485 DLMS-Cosem
Protocol (IEC 62056)
Integrated in most market leading software packages

Accessories
Communications :
External modems
Itron Sparklet modem, powered by the meter, is easily attachable under terminal cover
Cabling for external communications devices
IR-reading device for connection to PC

Configuration/ Calibration : Customer software for consumption monitoring
Itron ACE Pilot Utility Software for configuration and reading

Installation tools : Transformer ratio labels, Sealing kit

Documentation :
Test certificate
User guide
Installation Manual
