Description

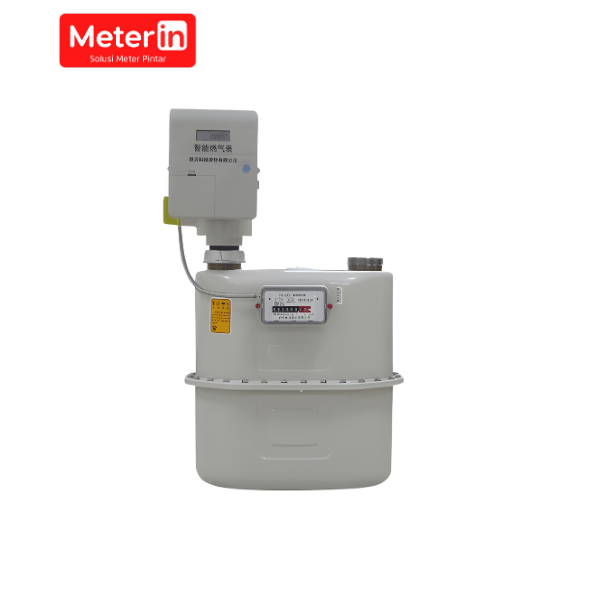

GPRS remote meter-reading large caliber gas meter is wireless remote gas meter, and with the function of wireless communication to read the meter remotely

HOW TO USE
1. Remote meter reading
The smart gas meter transmits meter data by wireless meter reading network, the management staff can inquiry gas consumption, valve status, and battery status etc, they can also read meter remotely by wireless meter reading software or hand held unit.

2. Close valve remotely
The gas meter will close valve and stop gas supply after get the command of close valve from the wireless software or hand held unit.

3. Allow to open valve remotely
Transmit command of open valve to the gas meter by wireless software or hand held unit, the gas meter will enter into allow to open valve status after get the command, while not directly open valve.

4. Open valve
When the gas meter in the status of allowing to open valve, press the button on the meter shell, the gas meter will open valve to supply gas (note: press the button cannot open gas meter valve to supply gas if the meter is in the status of forbidden to open valve)

5. Close valve when attacked
When the gas meter is attacked by strong electricity and magnet, the meter will close valve automatically. The attack source should be removed firstly, and then press the button to open valve and recover gas supply.

6. Replace battery
The battery need to be replaced when the gas meter stops gas supply automatically, the batteries are 3 pieces of AAA alkaline dry battery. When replace battery, open the battery cover, replace the old battery with new one, and then press the button on the meter shell to recover gas supply.

TECHINICAL PARAMETERS
Item : Smart Gas Meter
Model : G6 ; G10 ; G16 ; G25 ; G40 ; G65
Permanent Flowrate : qn (m³/h) : 6 ; 10 ; 16 ; 25 ; 40 ; 65
Maximum Flowrate qmax m³/h : 10 ; 16 ; 25 ; 40 ; 65 ; 100
Minimum Flowrate qmin m³/h : 0.06 ; 0.10 ; 0.16 ; 0.25 ; 0.40 ; 0.65
Transitional Flowrate qt m3/h : 1.0 ; 1.6 ; 2.5 ; 4.0 ; 6.5 ; 10.0
Initiate Flowrate dm³ : ≤5 ; ≤8 ; ≤8 ; ≤13 ; ≤20 ; ≤32
Cyclic Volume of Gas Volume Meter (1) dm³ : 3.5 ; 10 ; 10 ; 20 ; 30 ; 55
Weight(kg) : 5 ; 10 ; 10 ; 18 ; 27 ; 35
Total Pressure Loss : ≤250Pa ; ≤375Pa ; ≤500Pa
Minimum Reading : 0.002m³
Maximum Reading : 999999.99m³
Leak Tightness : No leak when≤45kPa
Working Pressure : 0.5kPa~30kPa
Basic Error : qmin≤q<qt ≤±3%; qt≤q≤qmax ≤±1.5%
Measurement Accuracy : Class 1.5
Working Temperature : -10℃~40℃
Security of IC Card : one card for one meter, cannot be copied
Life of IC Card : Use time≥100,000 times
Alarming Way : Close valve
Alarming Volume : The alarming volume will be 1/16 m³ of the current purchased volume (count the Integer) or 20m³, 50m³ ( Purchasing volume for one time>255 m³, the alarming volume will be 50 m³)
Static Working Current : ≤20.0μA
Working Power Supply : AA alkaline dry battery (4 pieces of 1.5V)

Catatan
Untuk Customized Development Silahkan Hubungi KAMI,.
Communication mode : LoRaWAN,NB-IoT
Module : GPRS ( Default ) NB-IoT / LoRawan
Type : Gas Meter and Water Meter

Additional information

Weight 6 kg
