Description

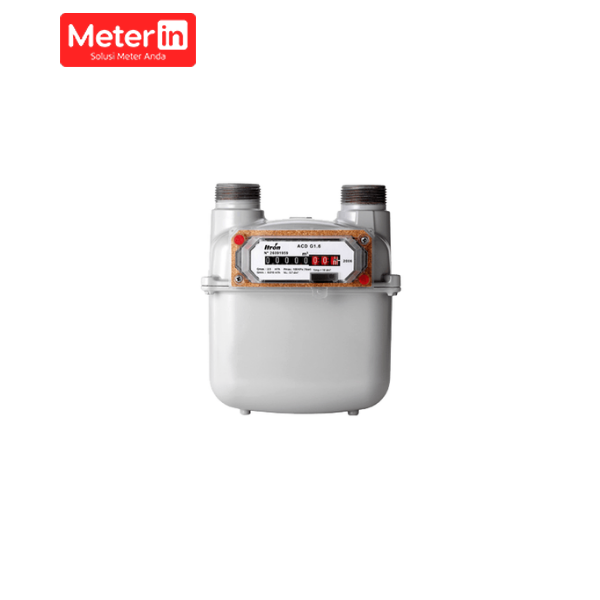

Itron ACD G1.6 adalah meteran gas diafragma hunian kompak yang dirancang khusus untuk pasar gas dunia yang terus berubah. ACD G1.6 meter sangat akurat, andal dan bebas perawatan.
Technical Spesification :

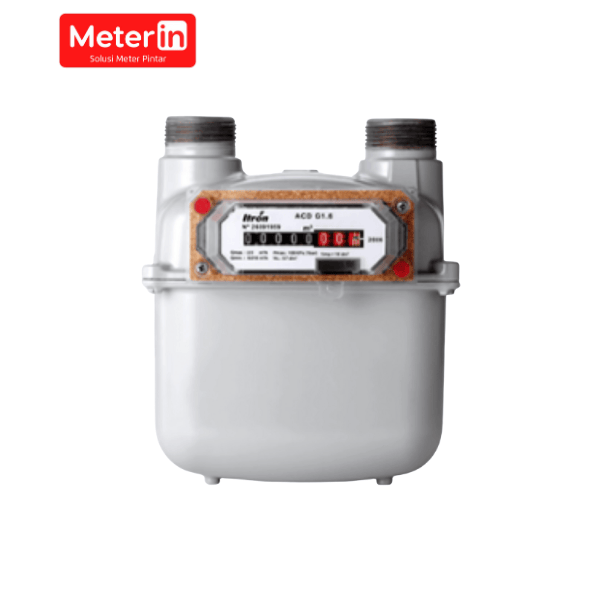

Residential Diaphragm Gas Meters (Itron ACD G1.6)
Gas Type : Natural gas, LPG and all non-corrosive gases
Cyclic Volume : 0.7 dm³
Temperature Range : Gas: -10°C to +40°C Ambient: -10°C to +40°C Storage: -30°C to +70°C
Maximum Operating Pressure : Steel 0.5 bar (0.1 bar HTL version) Aluminium 0.5 bar (1.0 bar optional)
Measuring Range: G0.6 Qmin 0.016 m³/h Qmax 1 m³/h G1 Qmin 0.016 m³/h Qmax 1.6 m³/h G1.6 Qmin 0.016 m³/h Qmax 2.5 m³/h (3 m³/h optional)
Casing Material: Sheet steel Aluminium alloy
Accuracy : Class 1.5
Approval : MID (04/22/EC) module H1 Local approvals like IRAM2717:2000, Portaria 31/1997, GB/T 6968 -1997, NOM-106-SCFI-2000 etc
Flow Direction : Left to Right (standard) or Right to Left (optional)
Connections : Metric standards: M26 x 1.5 / M30 x 2 IS0228 standards: G7/8” / G3/4” / G1”1/4 NPT standards: (Upon request) BS746 standards: 1” Others: W28.8×12 Specials connections on request
Colour : Grey RAL 7040 for Latin America Grey RAL 7042 for Asia Other colors on request
